Kinesis

Kinesis data stream

• real time streaming service, huge scale ingestion of data from many source
• public service & HA by design
• default 24-hrs moving window data retention before processing (can be increased to max. of 365 day), which can be accessed by multiple consumers
• multiple shard store data = stream in parallel
• for data ingestion, analytics, monitoring, app clicks
• records size limit is that: input - 1mb/s per shard and; output - 2mb/s per shard

Producer

Kinesis producer SDK - Putrecords

• APIs that are used are Putrecord(s), which uses batching and increase throughput, so less HTTP requests
• ProvisionedThroughputExceeded if we go over limits
  • make sure you don’t have a hot shard → choose a partition key
  • retries with backoff
  • increase shards
• Usecase: low throughput, high latency, simple API
• managed AWS sources used this under the hood
  • AWS IoT
  • CloudWatch Logs
  • Kinesis Data Analytics Kinesis Producer Library (KPL)
• C++/Java library
• Usecase: high performance, long-running producers
• automated and configurable retry mechanism
• Synchronous or Asynchronous API (better performance but hv to deal with the synchronizing issue)
• Allow summiting metrics to cloudwatch
• Batching by default - increase throughput, decrease cost:
  • Collect: “Gather individual data records and send them out in single API call”, records and write to multiple shards in the same PutRecords API call.
  • Aggregate: “Combine multiple small records into one big record.” increased latency
• Compress must be implemented by the user
• KPL records must be de-coded with KCL or special helper library
• When not to use
  • when the application cannot tolerate the delay caused by RecordMaxBufferedTime ⇒ use SDK putrecords instead Kinesis Agent
• monitor log files and sends them to kinesis data streams
• built on top of kpl, installed in linux-based server env
• features:
  • write from multiple directories and write to multiple streams
  • routing feature based on directory/ log file
  • pre-process data before sending to streams (csv to json, log to json…)
  • handles file rotation, checkpointing, and retry upon failures
  • emits metrics to cloudwatch for monitoring

Consumer

• Kinesis SDK
• Kinesis Client library (KCL)
• Kinesis Connector Library
• 3rd party: spark, kafka, Flume…
• AWS lambsda
• Kinesis Firehose
• Kinesis Data analytics Kinesis SDK
• records are polled by consumers from a shard withing a GetRecord()
• GetRecords return up to 10 MB of data/ 1000 records
• max of 5 GetRecords API calls per shard per second (more consumer, less througthput) Kinesis Client Library (KCL)
• read recods from kinesis produced with the kpl
• share multiple shards with multiple consumers in a “group”
• checkpointing feature to resume progress (if service go down)
• use dynamoDB for coordination and checkpointing (one row per shard)
• ExpiredIteratorException ⇒ increase WCU Kinesis Connector library
• leverages KCL library
• Must run on EC2
• write data to: S3/ DynamoDB/ Redshift/ Opensearch
• kidda replaced by lambda and firehost Lambda
• has a library to de-aggregate record from KPL
• can be used to trigger noti in real time
• has a configurable batch size

Consumers Options

Standard consumers:

• low number of consuming application (1,2,3..)
• can tolerate ~200 ms latency
• minimize cost Enhanced Fanout
• The consumer subscribes the shard and let data streams push the data to consumer
• 2MB/s per shard PER CUSTOMER!! (no more 2MB/s limit)
• reduce latency (to ~70 ms)
• default limit of 20 consumers
• higher costs

Kinesis Operations

• Adding shards (aka shard splitting): behind the hood, old one is deleted once data is expired and two new one are added
• Merging shards to save cost: two new one are deleted once data is expired and add a new old
• These operation could casue out-of-order records (consumers switch to read the data from the new child shards and left the old data in the parent) → make sure you need to consume all data from parents first (KCL already built in )
• re-sharding cannot be done in parallel, plan capacity in advance and it take time

Handling Duplicates

• producer retires (send same data) due to network timeouts (before data stream reply)
  • fix: embed unique record ID in the data to de-dup on the consumer side
• Consumer retries (read same data) due to:
  • worker terminiates unexpectedly
  • workerinsteances are added or removed
  • shards are merged or split
  • application is deployed
• Fixed:
  • make sure application idempotent
  • handle de-dup in the final des

Troubleshooting: Producer

• Write is too slow
  • hit the service limit/ shard-level limit and being throttled
  • hot shard
• large producers
  • batch things up, use KPL with collect/ agg
• 500/503 error (error rate>1%)
  • implement retry mechanism
• connection erros from flink to kinesis
  • network issue/ lack of resources in Flink’s env
  • VPC misconfigured
• timeout from flink to kinesis
  • increase timeout
• Throttling error
  • random partition key
  • exponential backoff
  • rate-limit Consumer
• records get skipped with KCL
  • check for unhandled exceptions on processRecods
• Records in same shard are processed by more than 1 processor
  • may be due t failover on the record processor workers (aka >1 per shard)
  • handle the zombie processor
• read too slow
  • increase number of shards
  • maxRecords per call is too low
• Shard Iterator expires unexpectedly
  • may need more write capacity on the shard table in DynamoDB
• record processing failling behind
  • increase retention period and increase resource
• Lambda function can’t get invoked
  • permissions issue on execution role
  • function is timing out (check max execution time)
  • breaching concurrency limit
• ReadProvisionedThroughputExceeded exception
  • throtting
  • reshard
  • reduce size of get records requests
  • use enhanced fan-out
  • use retires and exponential backoff
• High latency
  • monitor with GetRecords
  • increase shards
  • increase retention period

Kinesis Data Firehose (KDF)

• store data into final des in batch (data sink like redshift/ S3/ OpenSearch), the source record to S3 as well
• itself kinesis doesn’t persist data, it cumulates in a buffer and flushed based on time and size
  • buffer size (ex: 32 MB): will be hit for high throughput
  • buffer time (ex: 2min): will be hit for low throughput
• in-flight transform data with lambda functions/ support format conversion/ compression
• full managed service to deliver data to data lakes, data stores and analytic services
• automatic scaling, fully serverless and resilient
• near real time delivery (~60s)
• supports transformation of data on the fly with Lambda
• billing the volume
• Spark/ KCL do not read from KDF, only data stream

Kinesis Data Analytics (managed service for Apache Flink)

• real time processing of data from stream,using table API for SQL access
• ingests from kinesis data streams or firehose, or reference table from s3
• to destinations (back to firehose/ data streams, S3, redshift, elasticsearch & splunk, post-processing in Lambda)
• input stream contains data that keeps updating, query by SQL, and go to output stream
• connector lbrary llow flink to talk to anything you have an SDK for
• operators allow the transformation from one or more datastream into a new datastream
• FANDOM_CUT_FOREST: a sql function used for anomaly detection (outliers) on numeric columns in a stream
• use-case
  • streaming ELT
  • Continuous metrics generation
  • Responsive/ time-series analytics

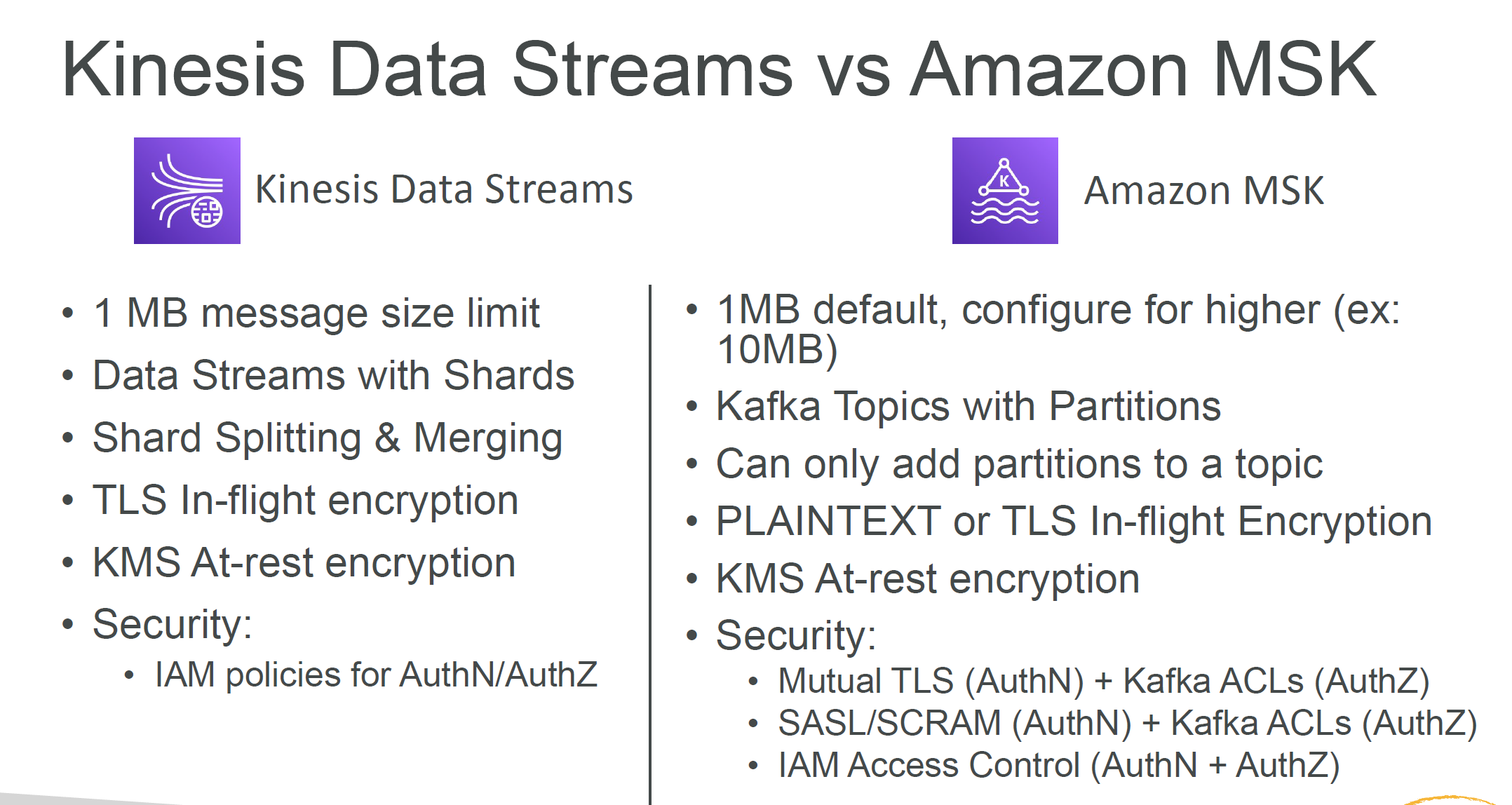

MSK Managed Streaming for Apache Kafka

• alternative to kinesis
• Fully managed apache kafka
  • allow you to create, update, delete clusters
  • managed brokers nodes and zookeeper
  • data is stored on EBS volumes (1GB - 16 TB)
• build producers and consumers
• create custom configurations for your clusters
  • default message size of 1MB (can set up to 10 MB)
  • broker instance type
  • number of broker per AZ
  • size of EBS volumes
• Managed connect (to send/ recieve the message from/ to MSK)
• 3 ways of Authentication (AuthN) & authorization (AuthZ)
  • Mutual TLS (AuthN) + Kafka ACLs (AuthZ)
  • SASL/SCRAM (AuthN) + Kafka ACLs (AuthZ)
  • IAM Access Control (AuthN + AuthZ)
• Multi-level cloudwatch metrics
  • basic (cluster and borker metrics)
  • Enhanced (enhanced broker metrics)
  • Topic-level (enhanced topic metrics)

Kinesis video streams

• ingest live video data from producers
• consumers can access data frame-by-frame
• can persist & encrypt
• can’t access directly via storage, only via API
• integrate with other AWS services (eg Rekognition & Connect), e.g.:
